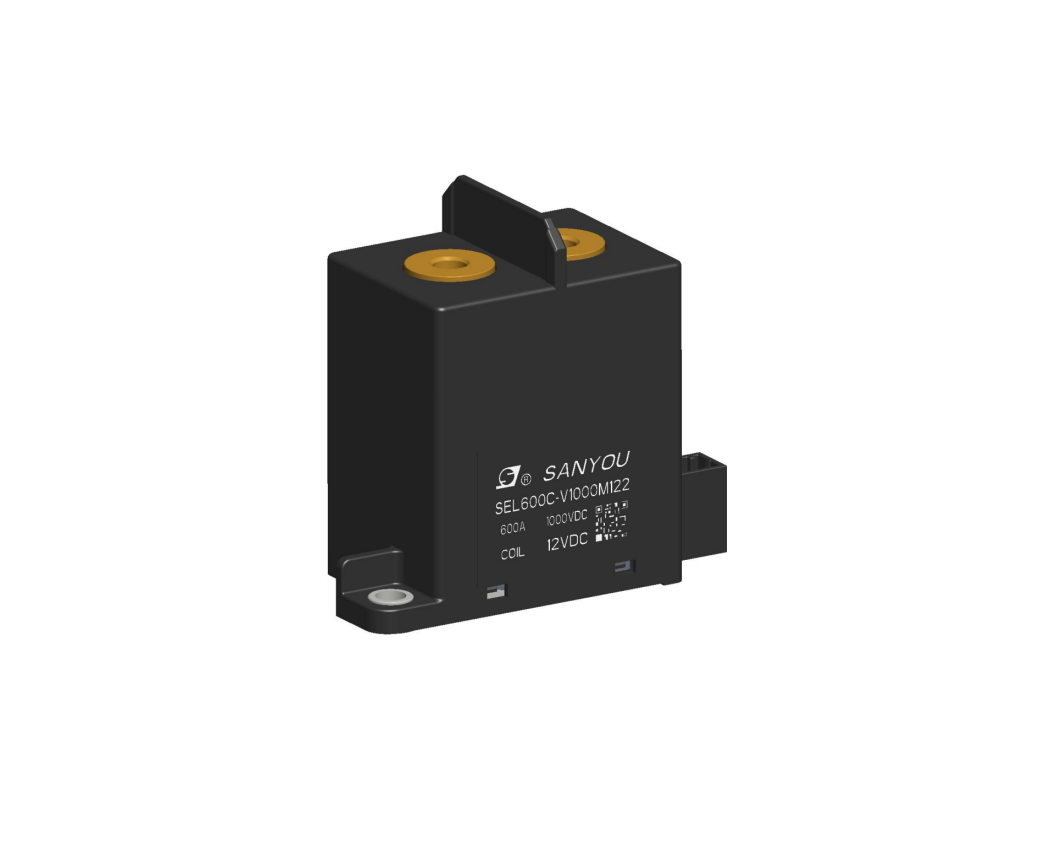

SEL600C series

产品概述

Feature :

●600 amps rated load

●Ceramic brazing technologyis uesd to prevent arcing leakage, fire and explosion.

●No polarity requirement for contacts ,the coil has polarity requirement

●RoHS compliant

产品优势

详细参数

Contact arrangement 1form A
Rated voltage 1000V
Rated current 600A
Max.switch voltage 1000V
Min.recommended contactload 1A,12VDC
Max.Breaking current 2000A,1000VDC,1cycle)
Contact resistance ≤0.3mΩ(at 20A)
Contact resistance ≤0.15mΩ(at  600A)
Operate/release time max. 30ms/10ms
Initial dielectric strength between open contacts 3000VAC 1min 1mA
between contact and coil 3000VAC 1min 1mA
max.Altitude 5500m
Insulation resistance between contact and coil ≥1000MΩ(1000VDC)
between opencontacts ≥1000MΩ(1000VDC)
Coil voltage range: 12~24V
Ambient temperature -40℃ to +85℃
Ambient humidity
5% to 85% RH
Vibration resistance (functional) 10 to 500Hz,49m/s2(5G)
Shock resistance
Functional Closed state:196m/s2(20G)
Disconnected state:98m/s2 (10G)
Destructive 490m/s2 (50G)
Terminal type Connector(coil)and screw (load)
Weight Approx.450g
External dimension
84.5×42.5×78.5
Packaging unit 36pcs
